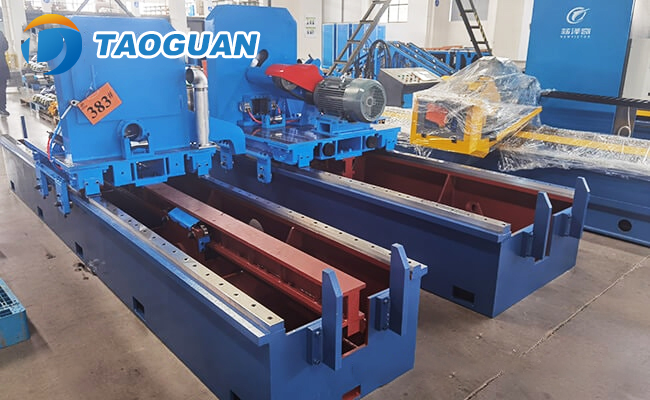

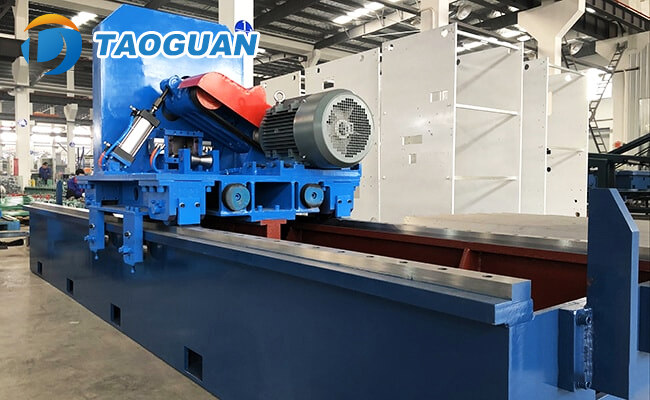

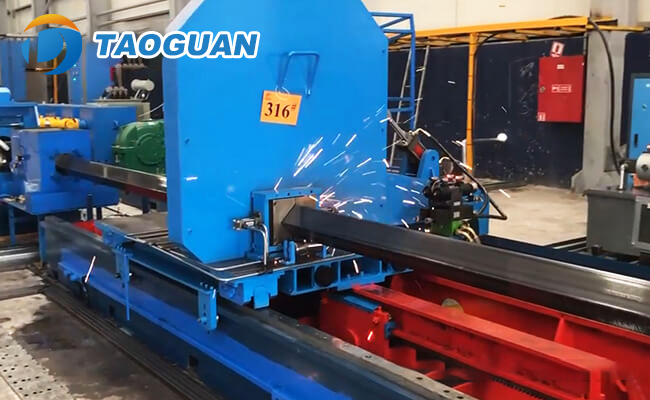

Hot Flying Saw Pipe Cutter
Hot Flying Saw Pipe Cutter Description
The Hot Flying Saw Tube Cutter is an in-line cutting machine for high-speed tube production lines, capable of cutting tubes accurately while they are still in the hot processing state (e.g. after welding).
Hot Flying Saw Pipe Cutter Parameter
| Max. Dia.(mm) | Wall Thickness(mm) | Saw Blade Dia. (mm) | Max. Speed(mm/min) | Lathe Length(mm) |
|---|---|---|---|---|
| CG-20 | 1.0 | Φ350*Φ35*2.0-200N | 120 | 3300 |
| CG-32 | 1.2 | Φ350*Φ35*2.0-200N | 120 | 3300 |
| CG-50 | 2.5 | Φ500*Φ70*2.5-216N | 120 | 3500 |
| CG-76 | 3.5 | Φ600*Φ70*3.0-216N | 100 | 4200 |
| CG-100 | 4.0 | Φ600*Φ70*3.5-216N | 100 | 4600 |
| CG-114 | 4.5 | Φ700*Φ70*3.5-240N | 100 | 4600 |
| CG-127 | 5.0 | Φ800*Φ110*4.5-270N | 80 | 4800 |
| CG-140 | 5.5 | Φ900*Φ110*4.5-300N | 80 | 5000 |
| CG-219 | 8.0 | Φ1100*Φ120*6.0-320N | 60 | 6280 |
| CG-273 | 10.0 | Φ1100*Φ120*6.0-320N | 60 | 9580 |
Hot Flying Saw Pipe Cutter Application
